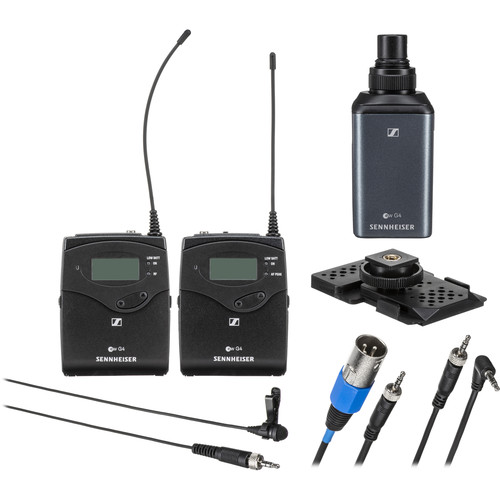

Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System

http://localhost:8069/web/image/product.template/1593/image_1920?unique=a86786c

Key Features
For Mobile Journalist, Videographer
ME 2-II Omnidirectional Lav Mic
Rugged Bodypack Transmitter
Plug-On Transmitter for Handheld Mic
Diversity Camera-Mount Receiver
1680 Auto-Scan Frequencies
Advanced Controls for Flexible Use
Daylight-Readable Display
8-Hour AA Batteries
Up to 12 Mics on Set / 330' Range

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy

Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System (A: 516 to 558 MHz)
Sennheiser EK 100 G4 Camera-Mount Wireless Receiver (A: 516 to 558 MHz)
Sennheiser SK 100 G4 Wireless Bodypack Transmitter (A: 516 to 558 MHz)
Sennheiser SKP 100 G4 Plug-On Transmitter for Dynamic Microphones A: (516 to 558 MHz)
Sennheiser ME 2-II Omnidirectional Lavalier Microphone with Locking 3.5mm Connector (Black)
Sennheiser CA2 Shoemount Adapter for EW Series Camera Mountable Receivers
Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
Sennheiser CL-100 1/8"-Male Mini Jack to XLR-Male Connector Cable for Sennheiser EK100 Receiver
6 x AA Batteries
Limited 2-Year Manufacturer Warranty

Sennheiser EW 100 ENG G4 Specs

System

Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies1680
Included Transmitters1 x Bodypack with Microphone
DiversityAntenna Diversity
RF Frequency BandA: 516 to 558 MHz
RF Bandwidth42 MHz
Frequency Step Size25 kHz
Max Operating Range330' / 100.6 m (Line of Sight)
Max Transmitters per Band12
Deviation48 kHz (Peak)
ModulationWideband FM

Receiver

Receiver TypeCamera-Mount
Mounting OptionsShoe-Mount (with Included Hardware)
Antenna1 x Flexible Whip, Fixed
Number of Audio Channels1
Audio I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
Gain Range42 dB (6 dB Steps)
Audio Output Level+12 dBu
Approximate RF Sensitivity1.6 µV
Squelch5 to 25 dBμV
Adjacent Channel Isolation>65 dB
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Battery Status, Output Level, RF Level)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Dimensions2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
Weight5.6 oz / 160 g (with Batteries)

Transmitter

Transmitter TypeBodypack
RF Output Power30 mW
Audio I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
MutingMute Switch
Audio Input Level3 V RMS (Max)
Gain Range60 dB (3 dB Steps)
Frequency Response80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line)
Sync MethodIR
Antenna1 x Flexible Whip, Fixed (Beltpack)
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
HousingMetal
Dimensions2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
Weight5.6 oz / 160 g (with Batteries)

Microphone

Microphone TypeLavalier
Sound FieldMono
CapsuleElectret Condenser
Polar PatternOmnidirectional
Frequency Range50 Hz to 18 kHz
Equivalent Noise Level36 dB
Maximum SPL130 dB SPL Peak
Sensitivity20 mV/Pa
Output1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length5.25' / 1.6 m
Operating Voltage7.5 V

Transmitter 2

Transmitter TypePlug-On
RF Output Power30 mW
Audio I/O1 x XLR 3-Pin Female Unbalanced Input (Lockable)
MutingMute Switch
Audio Input Level3 V RMS
Gain Range48 dB (6 dB Steps)
Frequency Response80 Hz to 18 kHz
Sync MethodIR
Antenna1 x Internal
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Dimensions1.7 x 4.1 x 1.7" / 43 x 105 x 43 mm
Weight6.9 oz / 195 g (with Batteries)

Packaging Info

Package Weight2.335 lb
Box Dimensions (LxWxH)16 x 6.75 x 3"

Specifications

Brand Sennheiser
Max Operating Range 300 ft & Up
Receiver Type Camera-Mount,
Transmitter Type Combo-Bodypack / Plug-On,
System Type Combo
users Per system 1
