  2. Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System
  1. Products
  2. Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System

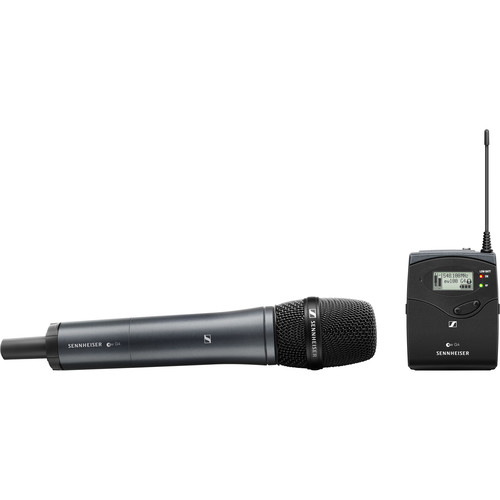

Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System

http://localhost:8069/web/image/product.template/2351/image_1920?unique=a86786c

Key Features
For Mobile Journalist, Presenters
MMD 835 Dynamic Cardioid Mic Capsule
Lightweight Handheld Transmitter
Diversity Camera-Mount Receiver
1680 Auto-Scan Frequencies
Advanced Controls for Flexible Use
Daylight-Readable Display
8-Hour AA Batteries
Up to 12 Mics on Set / 330' Range

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy

In the Box
Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System
Sennheiser EK 100 G4 Camera-Mount Wireless Receiver
Sennheiser SKM 100 G4 Handheld Wireless Microphone Transmitter with No Mic Capsule
Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones
Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
Sennheiser CL-100 1/8"-Male Mini Jack to XLR-Male Connector Cable for Sennheiser EK100 Receiver
Sennheiser CA2 Shoemount Adapter for EW Series Camera Mountable Receivers
4 x AA Batteries
Limited 2-Year Manufacturer Warranty

Sennheiser EW 135P G4 Specs

System

Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies1680
Included Transmitters1 x Bodypack with Microphone
DiversityAntenna Diversity
RF Frequency BandA: 516 to 558 MHz
RF Bandwidth42 MHz
Frequency Step Size25 kHz
Max Operating Range330' / 100.6 m (Line of Sight)
Max Transmitters per Band12
Deviation48 kHz (Peak)
ModulationWideband FM

Receiver

Receiver TypeCamera-Mount
Mounting OptionsShoe-Mount (with Included Hardware)
Antenna1 x Flexible Whip, Fixed
Number of Audio Channels1
Audio I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
Gain Range42 dB (6 dB Steps)
Audio Output Level+12 dBu
Squelch5 to 25 dBμV
Adjacent Channel Isolation>65 dB
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Battery Status, Output Level, RF Level)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Dimensions2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
Weight5.6 oz / 160 g (with Batteries)

Transmitter

Transmitter TypeHandheld
RF Output Power30 mW
Audio I/ONone
MutingNone
Audio Input Level3 V RMS (Max)
Gain Range48 dB (6 dB Steps)
Frequency Response80 Hz to 18 kHz (Mic)
80 Hz to 18 kHz (Line)
Sync MethodIR
Antenna1 x Internal
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
HousingMetal
Dimensions2 x 10.4" / 50 x 265 mm
Weight15.9 oz / 450 g (with Batteries)

Microphone

Microphone TypeHandheld Capsule
Sound FieldMono
CapsuleDynamic
Polar PatternCardioid
Maximum SPL154 dB SPL Peak
Sensitivity2.1 mV/Pa

Packaging Info

Package Weight2.32 lb
Box Dimensions (LxWxH)16 x 7.2 x 3"


Specifications

Brand Sony
Max Operating Range 300 ft & Up
Receiver Type Camera-Mount,
Transmitter Type Handheld,
System Type Handheld
users Per system 1
