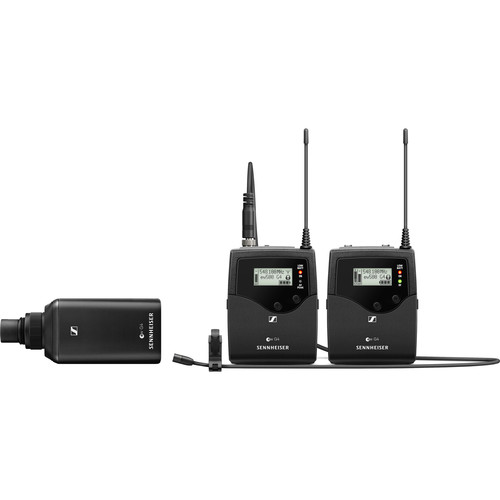

Sennheiser EW 500 FILM G4 Camera-Mount Wireless Combo Microphone System

http://localhost:8069/web/image/product.template/1595/image_1920?unique=6411dbf

Key Features
For Professional Filmmaker, Videographer
MKE 2 Miniature Omnidirectional Lav Mic
Rugged Bodypack Transmitter
Plug-On Transmitter with 48V Phantom
Diversity Camera-Mount Receiver
3520 Auto-Scan Frequencies
Adjustable RF Output Power Up to 50 mW
Balanced Output & Headphone Output
8-Hr AA Batteries
Up to 32 Mics On Set / 330' Range

KSh 210,000 210000.0 KES KSh 210,000 VAT Excluded

KSh 210,000 VAT Excluded

Not Available For Sale

  • Brand
    • Sennheiser
  • Max Operating Range
  • Receiver Type
  • Transmitter Type
  • System Type
  • users Per system

This combination does not exist.

Quantity
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy

Sennheiser EW 500 FILM G4 Camera-Mount Wireless Combo Microphone System (AW+: 470 to 558 MHz)
Sennheiser EK 500 G4 Pro Wireless Camera-Mount Receiver AW+: (470 to 558 MHz)
Sennheiser SK 500 G4 Wireless Bodypack Transmitter (AW+: 470 to 558 MHz)
Sennheiser SKP 500 G4 Pro Wireless Plug-On Transmitter AW+: (470 to 558 MHz)
Sennheiser MKE 2 Gold Series Subminiature Omnidirectional Lavalier Microphone with Locking 3.5mm Connector & Accessories (Black)
Fur Lavalier Windscreen
Sennheiser CA2 Shoemount Adapter for EW Series Camera Mountable Receivers
Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
Sennheiser CL-500 Balanced Cable for Use with Sennheiser EK500 Receiver 1/8"-Male Mini Jack to XLR-Male Connector
6 x AA Batteries
Limited 2-Year Manufacturer Warranty

Sennheiser EW 500 FILM G4 Specs

System

Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies3520
Included Transmitters1 x Bodypack
1 x Plug-On
DiversityAntenna Diversity
RF Frequency Band470 to 558 MHz
RF Bandwidth88 MHz
Frequency Step Size25 kHz
Max Operating Range330' / 100.6 m (Line of Sight)
Max Transmitters per Band32
EncryptionNone
Deviation±48 kHz (Peak)
ModulationWideband FM

Receiver

Receiver TypeCamera-Mount
Mounting OptionsShoe-Mount (with Included Hardware)
Antenna1 x Flexible Whip, Fixed (Top-Mount)
Number of Audio Channels1
Audio I/O1 x 1/8" / 3.5 mm TRS Female Balanced Line Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable)
Gain Range42 dB (6 dB Steps)
Audio Output Level1/8" / 3.5 mm Output:
+17 dBu (Balanced)
Approximate RF Sensitivity1.6 µV
SquelchAdjustable, 5 to 25 dBμV
Adjacent Channel Isolation>65 dB
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Battery Status, Output Level, RF Level)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Dimensions2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
Weight4.6 oz / 130 g (with Batteries)

Transmitter

Transmitter TypeBodypack
RF Output Power10 / 30 / 50 mW (Switchable, at 50 Ohms)
Audio I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
PadNone
MutingMute Switch
Audio Input Level3 V RMS (Mic Level, Line Level)
Gain Range60 dB (3 dB Steps)
Frequency Response80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line)
Sync MethodIR
Antenna1 x Internal, Fixed (Beltpack)
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Dimensions2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
Weight5.6 oz / 160 g (with Batteries)

Microphone

Microphone TypeLavalier
Sound FieldMono
CapsuleCondenser
Polar PatternOmnidirectional
Frequency Range20 Hz to 20 kHz
Equivalent Noise Level39 dB CCIR
Maximum SPL142 dB SPL
Sensitivity5 mV/Pa at 1 kHz
Output1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length5.25' / 1.6 m
Operating Voltage7.5 V
Operating Current Consumption250 µA
Weight0.6 oz / 17 g

Transmitter 2

Transmitter TypePlug-On
RF Output Power10 / 30 / 50 mW (Switchable, at 50 Ohms)
Audio I/O1 x XLR 3-Pin Female Unbalanced Input (Lockable)
Phantom Power+48 V
PadNone
MutingMute Switch
Audio Input Level6 V RMS (Mic Level, Line Level)
Gain Range48 dB (6 dB Steps)
Signal ProcessingNone
Frequency Response80 Hz to 18 kHz
Sync MethodIR
Antenna1 x Internal, Fixed
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
USB/Lightning ConnectivityNone
Display & Indicators1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Dimensions1.7 x 4.1 x 1.7" / 43 x 105 x 43 mm
Weight6.9 oz / 195 g (without Batteries)

Packaging Info

Package Weight2.385 lb
Box Dimensions (LxWxH)16 x 7.8 x 3"

Specifications

Brand Sennheiser
Max Operating Range 300 ft & Up
Receiver Type Camera-Mount,
Transmitter Type Combo-Bodypack / Plug-On,
System Type Combo
users Per system 1
