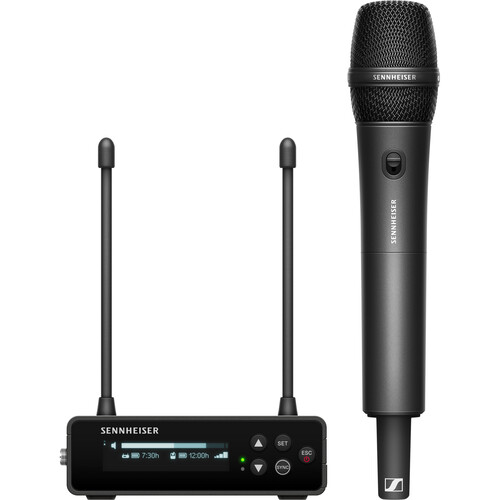

Sennheiser EW-DP 835 SET Camera-Mount Digital Wireless Handheld Microphone System

Streamline Your Audio with Setup Simplicity and Digital ClarityPurpose-built for video content creators, presenters, and newsgatherers looking for a stress-free wireless experience, the Sennheiser EW-DP 835 SET with Handheld Mic is a camera-mount, fully digital wireless microphone system that utilizes professional UHF transmission to reliably deliver Sennheiser's pristine, broadcast-quality audio directly to your camera. This configuration includes an EW-DP EK camera-mount, single-channel receiver with mounting kit, a lightweight EW-D SKM-S handheld transmitter with mute switch and MMD 835 dynamic cardioid mic capsule, plus 3.5mm and XLR output cables to connect the receiver to a DSLR/mirrorless camera or to a recorder or mixer.

Easy to set up and simple to operate, the EW-DP's pro-level features provide an intuitive user experience for first-time and experienced users alike. With a remarkable 134 dB dynamic range, the transmitter can handle just about any input level you throw at it without having to worry about setting the input gain to prevent clipping. The receiver's wide 56 MHz bandwidth, intelligent switching diversity reception with two antennas, and auto-scan with 2240 frequencies work to provide rock-solid wireless performance, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone, using the Smart Assist app, while Smart Notifications provide you with troubleshooting and system guidance. Intelligent battery management gives you extended operating time on set with up to 12 hours on transmitter and 7 hours on receiver.

Legendary Sennheiser Digital Sound with Ultrawide 134 dB Dynamic Range

• With a remarkable 134 dB dynamic range on the transmitter's input, the days of worrying about overloading your signal are over. The EW-D can handle a wide variety of sound sources, from quiet speakers or actors to the loudest sounds, all without requiring any gain adjustment at the transmitter.
• With 24-bit digital audio and a flat 20 Hz to 20 kHz frequency response, EW-DP delivers clear, accurate audio reproduction.

Rock-Solid UHF Wireless Audio for Professional Performance

• Used by professionals the world over, UHF transmission greatly enhances range (up to 330') and signal reliability because the system doesn’t have to compete with Wi-Fi devices and similar everyday sources of interference.
• Intelligent Switching Diversity technology compares incoming signals on the two independent antennas and receiver circuits to help eliminate dropouts and interference. The receiver switches between antennas only during header data as to never affect the audio information.
• The system equidistant tuning grid removes the need for frequency coordination and allows you to add additional transmitters and receivers—especially helpful when multiple wireless mics are used at the same time on a reality TV or film set.
• A very low latency of only 1.9ms helps you to easily keep the audio and video in sync.

Camera-Mount Receiver with OLED Screen and Multiple Powering Options

• At the heart of the system is the compact EW-DP EK portable, single-channel receiver, made with simplicity in mind for DIY cameramen, videographers, creators, and journalists working in the field without a crew. A front-facing OLED display allows for easy menu navigation and at-a-glance system status at any angle, in any light.
• To ensure peace of mind during long hours on set, the receiver can be powered via two AA batteries or the BA 70 lithium-ion rechargeable battery pack (all included). Power can also be supplied through the USB port, allowing it to run for numerous hours on a USB power pack or indefinitely with access to AC.

Versatile Mounting Options for Receiver

• In addition to the cold shoe mount with a 1/4"-20 thread on the bottom, the receiver comes with a magnetic cheese plate that provides flexible mounting options for camera cages and accessory arms.
• The magnetic mounting system lets you securely stack a second transmitter right on top when you’re shooting two, on-camera personalities. Sennheiser offers a combiner cable that will allow you to record both receivers to a camera’s single 3.5mm input.

Handheld Transmitter with Mute Switch and MMD 835 Cardioid Capsule

• The MMD 835 dynamic capsule features a cardioid polar pattern that helps minimize background noise, ideal for on-camera interviews and capturing isolated dialog in noisy environments.
• The rugged, all-metal transmitter is equipped with a mute button that can be locked out and overridden from the receiver or a phone/tablet during a take.
• The transmitter quickly pairs with the receiver via Bluetooth at a distance up to 120' at the press of a button.
• The bodypack provides up to 8 hours of operation on two AA batteries or 12 hours with the BA 70 lithium-ion rechargeable battery pack.
• The transmitter's interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid—capsules include the MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.

Control from Your Phone with Smart Assist App—No Wireless Expertise Required

• EW-D Smart Assist app (free download available separately) provides automated setup, operation, and monitoring using any iOS or Android device via Bluetooth. Auto frequency coordination creates reliable wireless connections for up to 16 systems, no wireless expertise required.
• Remote access to system settings whether at camera or across the set allows for quick and discreet adjustments on the fly—without having to bring the transmitter close to the receiver. If your phone is not available, you can fully operate your system using the buttons on the receiver.

Guidance When You Need It Most

• EW-DP is a wireless system that troubleshoots for you. Smart Notifications provide suggestions to errors that occur when setting up or operating the system. If your audio clips, Smart Notifications will suggest lowering the gain. When your battery is running low, the system will alert you.
• If you try to operate on a blocked frequency, you will be prompted to select another. If your transmitter and receiver are not linked, you’ll be prompted to press sync. And if the talent accidentally mutes their transmitter, you’ll be notified and will have the option to disable the mute remotely.

EW-DP 835 SET at a Glance

• Fully digital UHF wireless microphone system for video applications
• EW-DP EK portable, single-channel receiver
• EW-D SKM-S handheld transmitter with mute switch
• Interchangeable MMD 835 dynamic cardioid microphone capsule
• 56 MHz bandwidth with 2240 available frequencies for flexibility in any RF environment
• Industry leading 134 dB dynamic range for distortion-free transmission
• Exceptionally low latency (1.9 ms)
• Smart Assist app for monitor and control (iOS/Android)
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• 3.5mm headphone output on transmitter
• Intelligent battery management provides optimized operating time
• Extended battery life: up to 12 hours on transmitter, 7 hours on receiver
• External charging and powering via USB-C (receiver only)
• Magnetically stackable components for versatile mounting
