  2. Sennheiser XSW 2 Wireless Combo System with Handheld Mic & Senal Lav Mic
  1. Products
  2. Sennheiser XSW 2 Wireless Combo System with Handheld Mic & Senal Lav Mic

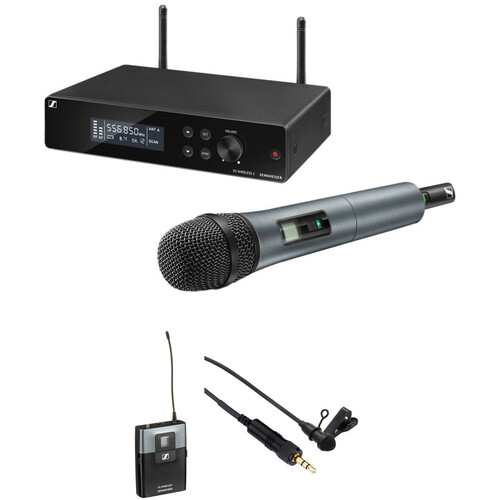

Sennheiser XSW 2 Wireless Combo System with Handheld Mic & Senal Lav Mic

http://localhost:8069/web/image/product.template/1600/image_1920?unique=a86786c

Key Features
For Presenter, Lecturer, or Performer
Senal OLM-2 Omnidirectional Lavalier Mic
Lightweight Bodypack Transmitter
e835 Cardioid Mic/Transmitter
Single-Channel 1/2 Rack Receiver
True-Diversity Reception
10-Hour AA Batteries
Expandable to 6 Mic Channels/125' Range

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy

In the Box
Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz)
EM-XSW 2 Receiver
SKM 835-XSW Handheld Transmitter
Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
NT 12-5 CW Power Supply
Rackmount Kit
Protective Pouch
2 x AA Batteries
Limited 2-Year Manufacturer Warranty
Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 to 572 MHz)
Senal OLM-2 Lavalier Microphone with 3.5mm Locking Connector for Sennheiser EW & Senal AWS-2000 Series
Tie Clip
Metal Windscreen
Limited 1-Year Manufacturer Warranty

Sennheiser XSW 2-835-A Wireless Handheld Microphone System With E835 Capsule (A: 548 To 572 MHz) Specs

System

Wireless TechnologyAnalog UHF
Included Transmitters1 x Handheld
DiversityTrue Diversity
RF Frequency BandA: 548 to 572 MHz
RF Bandwidth24 MHz
Frequency Step Size25 kHz
RF Channel ScanningAuto-Scan
Max Operating Range100' / 30.5 m (Line of Sight)
Max Transmitters per Band12
Built-In RecorderNo
Timecode SupportNo
EncryptionNone
ModulationWideband FM

Receiver

Receiver TypeTabletop / Rackmount
Mounting OptionsRackmount
Rackmount Size1 RU (1/2 Rack)
Antenna2 x External, BNC (Rear-Mount)
Number of Audio Channels1
Audio I/O1 x XLR 3-Pin Male Balanced Mic Output
1 x 1/4" TS Female Unbalanced Output
Gain Range40 dB (5 dB Steps)
Phantom Power ProtectionNone
Frequency Response50 Hz to 16 kHz
Network I/ONone
Word Clock I/ONone
USB/Lightning ConnectivityNone
RF PrincipleDouble Superheterodyne
SquelchAdjustable, 3 to 28 dBμV
Power RequirementsAC/DC Power Adapter
AC/DC Power AdapterVDC Included
DC Input Power12 VDC at 300mA
Display & Indicators1 x LCD (AF Level, Frequency, Group, Level)
HousingMetal
Operating Temperature32 to 104°F / 0 to 40°C
Dimensions7.9 x 1.7 x 5" / 200 x 42 x 127 mm
Weight24 oz / 680 g

Transmitter

Transmitter TypeHandheld
RF Output Power10 mW
Audio I/ONone
PadNone
MutingOff/On Switch
Auto-Level ControlNo
Signal ProcessingNone
Frequency Response80 Hz to 16 kHz
Sync Method2.4 GHz QPSK
Antenna1 x Internal
Approximate RF Sensitivity1.5 mV/PA
Power RequirementsBattery
Battery Type2 x AA (Included)
Display & Indicators1 x LCD (Battery Status, Channel, Power)
HousingABS

Microphone

Microphone TypeHandheld
ColorBlack
Sound FieldMono
CapsuleDynamic
Polar PatternCardioid
Frequency Range80 Hz to 14 kHz
THD< 0.9%
Sensitivity1.5 mV/Pa
Length10.2" / 260 mm
Diameter2.0" / 50 mm
Weight8.6 oz / 245 g

Packaging Info

Package Weight5.2 lb
Box Dimensions (LxWxH)13.75 x 12.7 x 3.65"

Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 To 572 MHz) Specs

Wireless TechnologyAnalog UHF
RF Frequency BandA: 548 to 572 MHz
RF Bandwidth24 MHz
Frequency Step Size25 kHz
RF Channel ScanningAuto-Scan
Built-In RecorderNo
Timecode SupportNo
EncryptionNone
ModulationWideband FM

Transmitter

Transmitter TypeBodypack
RF Output Power10 mW
Audio I/O1 x 1/8" / 3.5 mm TRS Male Input (Lockable)
Included Cable ConnectorNone
PadNone
MutingMute Switch
Audio Input Level0.5 V RMS (Mic Level)
1.8 V RMS (Line Level)
Auto-Level ControlNo
Gain Range20 dB
Signal ProcessingNone
Frequency Response50 Hz to 16 kHz (Line)
80 Hz to 16 kHz (Mic)
Sync MethodManual
Antenna1 x External, Fixed
Approximate RF Sensitivity52 dB / 3 µV
Power RequirementsBattery
Battery Type2 x AA (Not Included, Replaceable)
Approx. Battery Life10 Hour
USB/Lightning ConnectivityNone
Display & IndicatorsLCD
HousingABS
Dimensions2.8 x 3.8 x 1.1" / 71 x 96 x 28 mm
Weight3.4 oz / 95 g

Packaging Info

Package Weight1.345 lb
Box Dimensions (LxWxH)11 x 9.95 x 3.3"

Senal OLM-2 Lavalier Microphone With 3.5mm Locking Connector For Sennheiser EW & Senal AWS-2000 Series Specs

Microphone

CapsuleElectret Condenser
Polar PatternOmnidirectional
High-Pass FilterNone
IndicatorsNone

Performance

Frequency Range50 Hz to 20 kHz
Impedance15000 Ohms ± 30% at 1 kHz
Sensitivity-63 dBV/Microbar at 1 kHz

Connectivity

Outputs1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Headphone ConnectorNone

Power

Operating Voltage1 to 10 V

Physical

ColorBlack
MountingTie Tac Clip (Included)
Dimensionsø: 0.3 x L: 0.6" / ø: 7.6 x L: 15.2 mm (Microphone)
Weight1 oz / 28 g

Packaging Info

Package Weight0.27 lb
Box Dimensions (LxWxH)10.4 x 4 x 1.25"

Specifications

Brand Sennheiser
Max Operating Range 300 ft & Up
Receiver Type Rackmount,
Transmitter Type Combo-Bodypack / Handheld,
System Type Combo
users Per system 1
