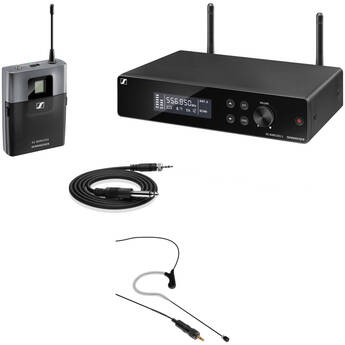

Sennheiser XSW1-CI1 Wireless Omni Earset Microphone System Kit

http://localhost:8069/web/image/product.template/1590/image_1920?unique=a86786c

Key Features
Public Speaking, Presentations, Lectures
Point Source CO-3 Earset Mic (Black)
Bodypack Transmitter
Tabletop Receiver
Auto Channel Scan for Clean Transmission
10-Hour AA Batteries
Up to 10 Mics on Stage

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy

Sennheiser XSW 1 CI1-A UHF Instrument Set (A: 548 to 572 MHz)
CL1 Instrument Cable
NT12-5 CW Power Supply
2 x AA Batteries
Limited 2-Year Manufacturer Warranty
Senal UEM-155-35H-BK Omni Earset Microphone with 3.5mm Locking Connector for Sennheiser Transmitters (Black)
Windscreen
Clothing Clip
Limited 1-Year Manufacturer Warranty

Sennheiser XSW 1 CI1-A UHF Instrument Set (A: 548 To 572 MHz) Specs

System

ModulationWideband FM
Frequency RangeA: 548 to 572 MHz
Switching BandwidthUp to 24 MHz
Signal to Noise Ratio≥ 103 dBA
Total Harmonic Distortion≤ 0.9%
Temperature RangeOperation: 32 to 104°F (0 to +40°C)
Storage-4 to 158°F (-20 to 70°C)
Transmitter Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)

Receiver

PrincipleDouble superheterodyne
DiversityAntenna switching diversity via internal antennas
Sensitivity< 3 μV at 52 dBA rms S/N (at peak deviation)
Frequency Response50 Hz to 16 kHz (-3 dB)
Max Output VoltageAt Peak Deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu
Adjustment RangeAudio: 45 dB, adjustable in 5-dB steps
Power Supply12 VDC nominal, 300 mA
SquelchAdjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level20 dB, switchable
Material of ConstructionABS housing
Dimensions7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
Weight12 oz (340 g)

Bodypack Transmitter

Output Power10 mW
Frequency ResponseLine: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz
Audio Input1/8" (3.5 mm) jack socket
Input VoltageMic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply2 x AA batteries, 1.5 V
Operating TimeApproximately 10 hours
Adjustment RangeTransmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of ConstructionRugged ABS housing
Dimensions2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
Weight3.4 oz (95 g)

Packaging Info

Package Weight2.72 lb
Box Dimensions (LxWxH)13.75 x 13.6 x 3.35"

Senal UEM-155-35H-BK Omni Earset Microphone With 3.5mm Locking Connector For Sennheiser Transmitters (Black) Specs

Bodypack Transmitter

Sound FieldMono
CapsuleElectret Condenser
Polar PatternOmnidirectional
Frequency Range50 Hz to 18 kHz
Impedance1.5 Kilohms ± 30% at 1 kHz
Sensitivity-60 dB
Output1/8" / 3.5 mm Locking
Cable Length4' / 1.22 m
Operating Voltage1 to 10 V
Length6" / 152.40 mm
Diameter0.2" / 5.08 mm
Weight0.3 oz / 8.51 g

Packaging Info

Package Weight0.305 lb
Box Dimensions (LxWxH)6.45 x 4.65 x 0.95"

Specifications

Brand Sennheiser
Max Operating Range 300 ft & Up
Receiver Type Rackmount,
Transmitter Type Bodypack,
System Type Earset
users Per system 1
