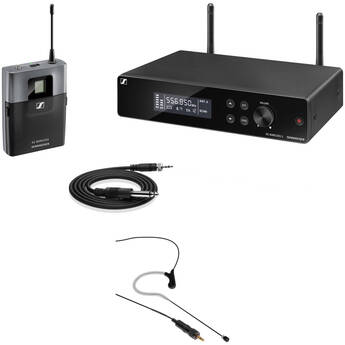

Sennheiser XSW2-CI1 Rackmount Wireless Earset Microphone System Kit

http://localhost:8069/web/image/product.template/1589/image_1920?unique=a86786c

Key Features
Public Speaking, Presentations, Lectures
Senal Omni Earset Mic (Beige)
Bodypack Transmitter
True-Diversity Rackmount Receiver
Auto Channel Scan for Clean Transmission
Includes Rackmount Kit
10-Hr AA Batteries
Up to 12 Mics on Stage

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy

Sennheiser XSW2-CI1 Wireless 2 Instrument System (A: 548 to 572 MHz)
EM-XSW 2 Receiver
SK-XSW Bodypack Transmitter
1/4" to 1/8" Instrument Cable
2 x AA Batteries
NT 12-5 CW Power Supply
Rackmount Kit
Protective Pouch
Limited 2-Year Manufacturer Warranty
Senal UEM-155-35H-BE Omni Earset Microphone with 3.5mm Locking Connector for Sennheiser Transmitters (Beige)
Windscreen
Clothing Clip
Limited 1-Year Manufacturer Warranty

Sennheiser XSW2-CI1 Wireless 2 Instrument System (A: 548 To 572 MHz) Specs

System

Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies96
Included Transmitters1 x Bodypack
DiversityTrue Diversity
RF Frequency BandA: 548 to 572 MHz
RF BandwidthUp to 24 MHz
Frequency Step Size25 kHz
RF Channel ScanningAuto-Scan
Max Transmitters per Band12
ModulationWideband FM
SNR≥103 dBA
THD≤0.9 %

Receiver

Receiver TypeTabletop / Rackmount
Mounting OptionsRackmount (with Included Hardware)
Rackmount Size1 RU (1/2 Rack)
Antenna2 x External, BNC (Rear-Mount)
Number of Audio Channels1
Audio I/O1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TS Unbalanced Output
Gain Range40 dB
Audio Output LevelXLR Output:
+12 dBu
1/4" Output:
+6 dBu
USB/Lightning ConnectivityNone
RF PrincipleDouble Superheterodyne
SquelchAdjustable, 3 to 28 dBμV
Power RequirementsAC/DC Power Adapter
AC/DC Power Adapter12 VDC at 300 mA (Included)
Display & Indicators1 x LCD (Channel, Frequency, Group, Level, RF Level, Sync)
HousingMetal
Operating Temperature32 to 104°F / 0 to 40°C
Dimensions7.9 x 1.7 x 5" / 200 x 42 x 127 mm
Weight24 oz / 680 g

Transmitter

Transmitter TypeBodypack
RF Output Power10 mW
Audio I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
Included Cable Connector1/4" TS
PadNone
MutingOff/On Switch
Audio Input Level2.6 V RMS (Max, Line Level)
1.5 V RMS (Max, Mic Level)
Gain Range0 to -30 dB (10 dB Steps)
Signal ProcessingNone
Cable Tone SimulationNone
Frequency Response80 Hz to 16 kHz (Mic)
50 Hz to 16 kHz (Line)
Sync Method2.4 GHz QPSK
Antenna1 x Flexible Whip
Approximate RF Sensitivity52 dB / 3 µV
Power RequirementsBattery
Battery Type2 x AA (Included)
Approx. Battery Life10 Hours
USB/Lightning ConnectivityNone
Display & Indicators1 x LCD (Battery Status, Power, Sync)
HousingABS
Dimensions2.8 x 3.8 x 1.1" / 71 x 96 x 28 mm
Weight3.4 oz / 96 g

Packaging Info

Package Weight4.83 lb
Box Dimensions (LxWxH)13.75 x 13.6 x 3.45"

Senal UEM-155-35H-BE Omni Earset Microphone With 3.5mm Locking Connector For Sennheiser Transmitters (Beige) Specs

Sound FieldMono
CapsuleElectret Condenser
Polar PatternOmnidirectional
Frequency Range50 Hz to 18 kHz
Impedance1.5 Kilohms ± 30% at 1 kHz
Sensitivity-60 dB
Output1/8" / 3.5 mm Locking
Cable Length4' / 1.22 m
Operating Voltage1 to 10 V
Length6" / 152.40 mm
Diameter0.2" / 5.08 mm
Weight0.3 oz / 8.51 g

Packaging Info

Package Weight0.315 lb
Box Dimensions (LxWxH)6.45 x 4.6 x 0.95"

Specifications

Brand Sennheiser
Max Operating Range 300 ft & Up
Receiver Type Rackmount,
Transmitter Type Bodypack,
System Type Earset
users Per system 1
