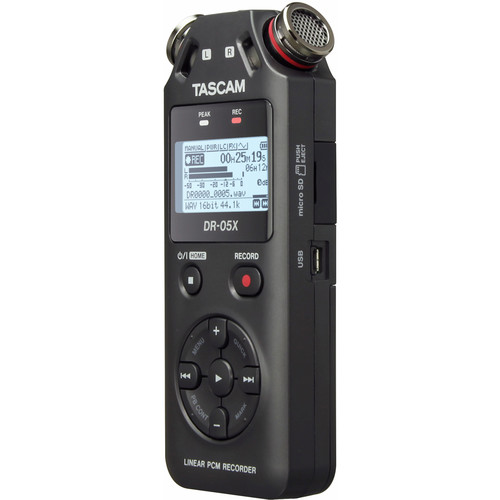

TASCAM DR-05X 2-Input / 2-Track Portable Audio Recorder with Onboard Stereo Microphone

http://localhost:8069/web/image/product.template/863/image_1920?unique=a86786c

Key Features
Speech, Effects, and Music Recording
Onboard Omni Mics, Built-In Speaker
3.5mm Mic/Line Input w/ Plug-In Power
Built-In Tuner, EQ, and Reverb
Records in WAV Format up to 96 kHz
3.5mm Line/Headphone Output
Auto Recording & Pre-Recording Functions
Battery Life up to 17.5 Hours
Supports microSDXC Cards up to 128GB
Auto Level, Limiter, and Low-Cut Filters

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy


  • TASCAM DR-05X 2-Input / 2-Track Portable Audio Recorder with Onboard Stereo Microphone (Black)
  • 2 x AA Alkaline Batteries
  • Limited 1-Year Warranty for Parts


TASCAM DR-05X Specs

Portable Recorder

Number of TracksWAV:
2
Maximum Sampling Rate96 kHz / 24-Bit
MicrophoneBuilt-In Omnidirectional Condenser Stereo Pair, A/B Configuration
Built-In SpeakerYes, 0.3 W Mono
DisplayMonochrome LCD (Backlit)
Memory Card SupportmicroSD (64 MB 3 GB)
microSDHC (4 GB to 32 GB)
microSDXC (48 Up to 128 GB)
Internal StorageNone

Recording

Audio File FormatsBWF, MP3, WAV
Sample RatesWAV:
44.1 / 48 / 96 kHz
Bit Depth16 / 24-Bit
Bit Rates32 to 320 kb/s (Record)
32 to 320 kb/s + VBR (Playback)
Signal Processing & FXAuto Gain, EQ, Limiter, Low-Cut Filter, Reverb
Timecode SupportNo
Recording TimeWAV 44.1 kHz/16-Bit:
1 Hr 41 Mins per GB (Stereo)
WAV 48 kHz/16-Bit:
1 Hr 33 Mins per GB (Stereo)
WAV 96 kHz/16-Bit:
46 Mins per GB (Stereo)
WAV 44.1 kHz/24-Bit:
1 Hr 7 Mins per GB (Stereo)
WAV 48 kHz/24-Bit:
1 Hr 2 Mins per GB (Stereo)
WAV 96 kHz/24-Bit:
31 Mins per GB (Stereo)
MP3 32 kb/s:
74 Hrs 32 Mins per GB (Stereo)
MP3 64 kb/s:
37 Hrs 16 Mins per GB (Stereo)
MP3 96 kb/s:
24 Hrs 50 Mins per GB (Stereo)
MP3 128 kb/s:
18 Hrs 38 Mins per GB (Stereo)
MP3 192 kb/s:
12 Hrs 25 Mins per GB (Stereo)
MP3 256 kb/s:
9 Hrs 19 Mins per GB (Stereo)
PCM 320 kb/s:
7 Hrs 27 Mins per GB (Stereo)

Connectivity

Analog I/O1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output
Digital I/ONone
Phantom PowerNone
Plug-In PowerYes
System Connection1 x Micro-USB (2.0)

Performance

Frequency Response20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA)
20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +1/-3 dB (at 96 kHz, JEITA)
Max Input LevelMic/Line Inputs:
-4 dBV
Max Output LevelLine Outputs:
+2 dBV
Headphone Output Power20 mW per Channel into 32 Ohms
ImpedanceMic/Line Inputs:
≥18 Kilohms (Plug-In Power Off)
≥2 Kilohms (Plug-In Power On)
Line Outputs:
12 Ohms
SNRLine Inputs:
≥92 dB
THD≤0.05%
Microphone Max SPL125 dB SPL

Power

Power OptionsBattery, USB Bus Power, AC/DC Power Adapter
Battery Type2 x AA (Included)
Approximate Battery LifeWAV 44.1 kHz/16-Bit:
17.5 Hours (Alkaline, 2 Channels, without Headphones)
16.5 Hours (Alkaline, 2 Channels, with Headphones)
14.5 Hours (NiMH, 2 Channels, without Headphones)
14 Hours (NiMH, 2 Channels, with Headphones)
WAV 96 kHz/24-Bit:
15.5 Hours (Alkaline, 2 Channels, without Headphones)
14 Hours (Alkaline, 2 Channels, with Headphones)
12.5 Hours (NiMH, 2 Channels, without Headphones)
13 Hours (NiMH, 2 Channels, with Headphones)
MP3 128 kb/s:
16.5 Hours (Alkaline, 2 Channels, Playback, with Headphones)
13 Hours (NiMH, 2 Channels, without Headphones)
13.5 Hours (NiMH, 2 Channels, with Headphones)
MP3 320 kb/s:
11 Hours (Alkaline, 2 Channels, without Headphones)
15.5 Hours (Alkaline, 2 Channels, without Headphones)
10 Hours (NiMH, 2 Channels, without Headphones)
13.5 Hours (NiMH, 2 Channels, with Headphones)
AC/DC Power AdapterVDC Not Included

Physical

Mounting Options1/4"-20 Female
Operating Temperature32 to 104°F / 0 to 40°C
Dimensions2.4 x 5.6 x 1" / 6.1 x 14.1 x 2.6 cm
Weight4.2 oz / 119 g (without Batteries)
5.8 oz / 165 g (with Batteries)

Packaging Info

Package Weight0.75 lb
Box Dimensions (LxWxH)7.4 x 4.9 x 2.4"

Specifications

Brand Tascam
internal capacity 0
number of tracks 2
