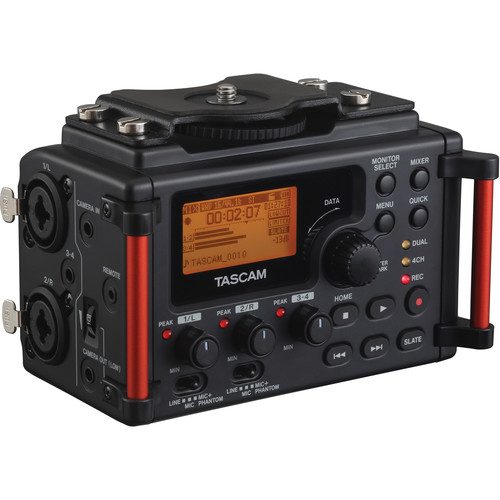

TASCAM DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder

http://localhost:8069/web/image/product.template/866/image_1920?unique=a86786c

Key Features
Filmmaking, TV, and Web Broadcast
Optimized for DSLR Shooters
Dual XLR-1/4" Inputs with Phantom Power
3.5mm Mic/Line Input with Plug-In Power
Records in WAV up to 96 kHz
3.5mm Camera, Line & Headphone Outputs
Supports Battery, AC, or USB Powering
Supports SDHC Cards up to 32GB
Silent Soft-Touch Rubber Keys
Auto Level, Limiter & Low-Cut Filter

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

We DELIVER COUNTRYWide

bEST PRICES IN TOWN

100% Secured
Payment

07-Day Return
Policy


  • TASCAM DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder
  • USB Cable
  • Limited 1-Year Warranty for Parts


TASCAM DR-60D MKII Specs

Portable Recorder

Number of Tracks4
Maximum Sampling Rate96 kHz / 24-Bit
MicrophoneNone
Built-In SpeakerNo
DisplayMonochrome LCD (Backlit)
Memory Card SupportSD (64 MB to 2 GB)
SDHC (4 GB to 32 GB)
Internal StorageNone

Recording

Audio File FormatsBWF, WAV
Sample RatesWAV:
44.1 / 48 / 96 kHz
Bit Depth16 / 24-Bit
Signal Processing & FXAuto Gain, EQ, Limiter, Low-Cut Filter
Timecode SupportNo
Recording TimeWAV 44.1 kHz/16-Bit:
1 Hr 41 Mins per GB (Stereo)
WAV 48 kHz/16-Bit:
1 Hr 33 Mins per GB (Stereo)
WAV 96 kHz/16-Bit:
46 Mins per GB (Stereo)
WAV 44.1 kHz/24-Bit:
1 Hr 7 Mins per GB (Stereo)
WAV 48 kHz/24-Bit:
1 Hr 2 Mins per GB (Stereo)
WAV 96 kHz/24-Bit:
31 Mins per GB (Stereo)

Connectivity

Analog I/O2 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
1 x 2.5 mm TRS Female Remote Input
Digital I/ONone
Phantom Power+24 / 48 V ± 4 V (Selectable on Individual Inputs)
Phantom Power Current10 mA per Channel
Plug-In PowerYes
System Connection1 x Mini-USB (2.0)

Performance

Frequency ResponseLine Outputs, Mic/Line Inputs:
20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz, JEITA)
Gain/Trim RangeBalanced Inputs:
+11 dB to +64 dB
Unbalanced Inputs:
+3 dB to +38 dB
Max Input LevelMic Inputs:
0 dBu
Line Inputs:
+24 dBu
1/8" Inputs:
+10 dBV
Camera Inputs:
+6 dBV
Max Output LevelCamera Outputs:
-30 dBV
Line Outputs:
+10 dBV
Headphone Output Power50 mW per Channel
ImpedanceMic Inputs:
2 Kilohms
Line Inputs:
≥10 Kilohms
1/8" / 3.5 mm Inputs:
10 Kilohms
Camera Outputs:
200 Ohms
Line Outputs:
200 Ohms
SNR≥92 dB
THD≤0.02%
EIN-120 dBu

Power

Power OptionsBatteries, USB Bus Power, AC/DC Power Adapter
Battery Type4 x AA (Not Included)
Approximate Battery LifeWAV 44.1 kHz/16-Bit:
2.5 Hours (AA Alkaline, 2 Channels, Phantom On, Recording)
4.5 Hours (AA Alkaline, 2 Channels, Phantom Off, Recording)
3.25 Hours (AA NiMH, 2 Channels, Phantom On, Recording)
5 Hours (AA NiMH, 2 Channels, Phantom Off, Recording)
AC/DC Power Adapter5 VDC (Not Included)

Physical

Mounting Options1/4"-20 Female
Operating Temperature32 to 140°F / 0 to 40°C
Dimensions5.2 x 3.7 x 3.1" / 133 x 93.2 x 78 mm
Weight1.1 lb / 510 g (without Batteries)

Packaging Info

Package Weight1.855 lb
Box Dimensions (LxWxH)8.3 x 6.3 x 5.8"

Specifications

Brand Tascam
internal capacity 0
number of tracks 4
