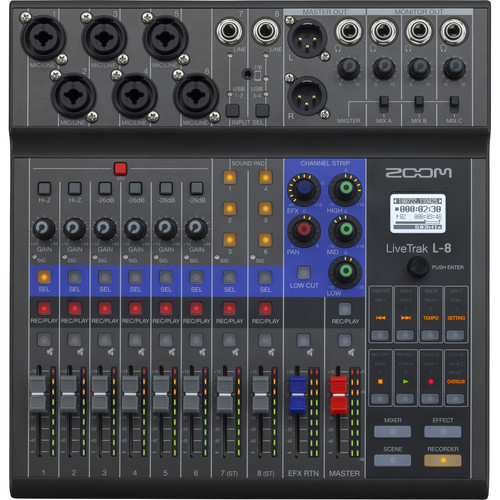

Zoom LiveTrak L-8 Portable 8-Channel Digital Mixer and Multitrack Recorder

http://localhost:8069/web/image/product.template/1528/image_1920?unique=1647d0d

Key Features
Portable Podcasting/Music Studio
6 XLR-1/4" Mic/Line Inputs with +48V
10 Faders to Control Audio Levels
Multitrack Recording via SD Card and USB
Mix-Minus Prevents Call Echo & Feedback
Built-In Effects and 3-Band EQ
4 Headphone Outputs for Host and Guests
6 Programmable Pads for Sounds & Music
Powered via Battery or USB Power Supply

KSh 55,000 55000.0 KES KSh 55,000 VAT Excluded

KSh 55,000 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Quantity
    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    We DELIVER COUNTRYWide

    bEST PRICES IN TOWN

    100% Secured
    Payment

    07-Day Return
    Policy

    Zoom L8 Specs

    Form FactorDesktop
    Number of Tracks8
    Maximum Simultaneous Tracks12 x Recording / 10 x Playback
    DisplayLCD (Backlit)
    Maximum Sampling Rate96 kHz / 24-Bit
    Meters12 x 9-Segment LED

    Signal Processing

    Gain/Trim RangeMic/Line Inputs:
    +10 dB to +54 dB (Hi-Z Off)
    -3 dB to +41 dB (Hi-Z On)
    High-Pass Filter75 Hz, 12 dB/Octave
    EQ ParametersHigh: ±15 dB at 10 kHz (Shelving)
    Mid: ±15 dB at 2.5 kHz (Notch/Peak)
    Low: ±15 dB at 100 Hz (Shelving)
    Built-In Effects8 x Effect (Type Unspecified)

    Connectivity

    Analog Audio I/O2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
    4 x Combo XLR-1/4" TRS Balanced Mic/Line Input
    2 x 1/4" TS Unbalanced Line Input
    1 x 1/8" / 3.5 mm TRRS Unbalanced Smartphone In/Out
    2 x XLR 3-Pin Balanced Line Output
    4 x 1/4" TRS Unbalanced Headphone Output
    Phantom Power48 V
    Host Connection ProtocolUSB 2.0

    Performance

    Frequency Response20 Hz to 20 kHz +0/-1 dB (at 44.1/48 kHz)
    20 Hz to 40 kHz +0/-3 dB (at 96 kHz)
    Maximum Input LevelMic/Line Inputs:
    -2 dBu for 0 dBFS (without Pad)
    +24 dBu for 0 dBFS (with Pad)
    1/4" Line Inputs:
    +3 dBu (Unbalanced)
    1/8" / 3.5 mm Inputs:
    +3 dBu
    Maximum Output LevelXLR Outputs:
    +14.5 dBu
    Headphone Output Power10 mW per Channel into 60 Ohms (Max)
    ImpedanceXLR Inputs:
    3 Kilohms
    1/4" Line Inputs:
    3 Kilohms (Balanced)
    10 Kilohms (Unbalanced)
    1/4" Hi-Z Inputs:
    1 Megohm
    1/8" / 3.5 mm Inputs:
    10 Kilohms
    XLR Outputs:
    100 Ohms
    1/4" Outputs:
    10 Ohms
    EIN≤ 121 dBu (IHF-A, +54 dB Gain, 150-Ohm Source)

    Digital Audio

    Audio File FormatsWAV
    Sample Rates44.1 / 48 / 96 kHz (Record)
    Bit Depths16 / 24-Bit (Recording)
    24-Bit (AD/DA Conversion)

    Audio Storage & Playback

    Supported MediaSD Card
    Memory Card Slot1 x SDXC
    Supported Media CapacitySDHC:
    4 GB Minimum to 32 GB Maximum
    SDXC:
    64 GB Minimum to 512 GB Maximum

    Compatibility

    OS CompatibilitymacOS 10.12 or Later
    Windows 7 or Later (32/64-Bit)
    iOS 10 or Later
    *As of November, 2021: Check with manufacturer for the most up-to-date compatibility
    Processor RequirementMac:
    Intel Core i3 or Better
    PC:
    Intel Core i3 or Better
    Required HardwareAvailable USB 2.0 Port, USB 3.0 / 3.1 Gen 1 Port ([or])
    Lightning to USB Adapter (Not Included)

    Power

    Power RequirementsBattery, AC/DC Power Adapter (Not Included), USB Bus Power
    AC/DC Power Adapter5 VDC at 1 A (Included)
    Power Consumption5 W
    Battery Type4 x AA
    Approximate Battery Life2 Hours (Alkaline, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load)
    3.5 Hours (NiMH, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load)
    6.5 Hours (Lithium, 4 Channels, Recording, Phantom Off, Backlit Display, Stamina Mode/Battery Save, 62-Ohm Load)

    Physical

    Dimensions10.6 x 11.1 x 2.9" / 26.8 x 28.2 x 7.4 cm
    Weight3.4 lb / 1.6 kg

    Packaging Info

    Package Weight4.975 lb
    Box Dimensions (LxWxH)13.9 x 13.4 x 3.8"
